HDPE PIPE

Product: HDPE PIPE

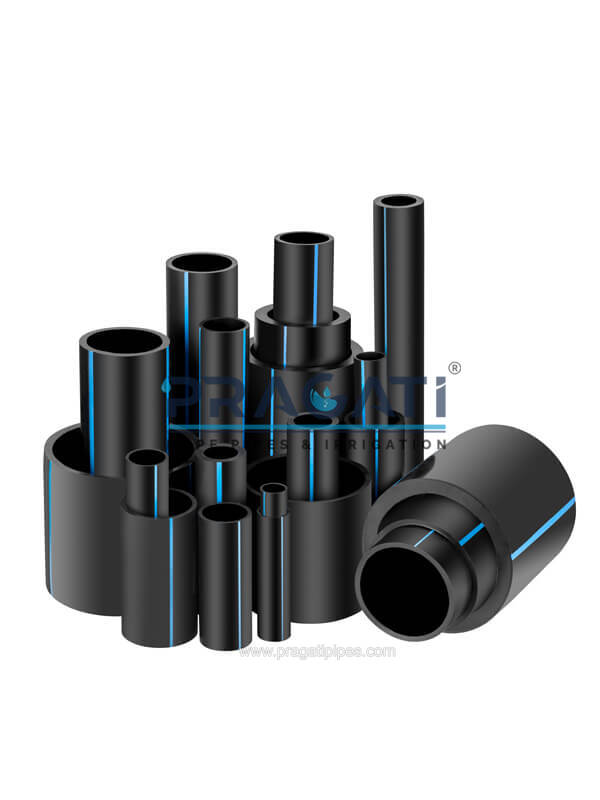

HDPE PIPE We Offer A Wide Range Of High Density Polyethylene (Hdpe) Pipes Which Are Uses Across Various Industries As Well As Water Supply In Agriculture & Domestic Purpose. PRAGATI PIPE INDUSTRIES Are Manufactured From 100% Virgin Pe Granules To Ensure Our Committment Of Best Quality. Hdpe Pipes Are The Best Option In Today's Market Due To Its Advantages Over Cast Iron G.I. Pipe, Mild & Stainless Steel Pipes Because Of Properties Like Resistence To Corrosion, Durable, Light In Weight & Flexibility Etc.

SPECIFICATIONS

Range Dia.: 16 Mm To 200 Mm Od
Standard: ISO 4984 : 2016
Brand: Pragati,Ruston,Penguin
Grade: Pe 63, Pe 80, Pe 100
Color: Blacke With Three Stripes
Country Of Origin: Made In India
Head Shape: Round
Pressure Class: 2.5,4,6,8,10,12.5 &16 Kg/Cm
Length: Available In Standard Length 50,100,200,500 And 1000 Meter Colls Depending On The Pipes Dimensions. Or Large Diameter In Fixed Length Of 6 Meter As Per Customer Requirements.
Material: Hdpe

APPLICATION AREAS

  • For Transportation Of Potable Water.
  • Irrigation And Sprinkling System.
  • Chemical Processing Plants.
  • Effluent Lines.
  • Surface Water Drainage.
  • Ventilation Of Corrosive Gases.
  • Relining Of Old Sewers.
  • Horticulture & Green House Technology.
  • Industries
  • Houses
  • Mines
  • Agricultural Sector
  • Cabling
  • Highway & Railway Crossing.
  • To Use In Underground Purpose
  • To Use In Water Pipe
  • To Use In Coil Pipe
  • To Use In Agricultural Pipe
  • To Use In Water Supply
  • Hdpe Pipe Is Like As Black Hdpe Pipe

ADVANTAGES

  • Strong & Durable
  • Light Weight
  • Convenient Jointing
  • Leak Proof
  • Energy Saving
  • Resistant To Moisture, Corrosion, Abrasion & Wearing
  • Termite Proof And Uv Resistant
  • Longer Lasting & Maintenance Free
  • Earthquake Resistance
  • Excellent Flow Characteristics
  • Smooth Internal Surface Finish Which Have Low Fricition Which Save Energy
  • Have No Effect Of Weather Condition
  • Tough & Strong And Long Lasting, Up To 50 Years Durability.
  • Installed In Bore Wells Withouts Joints.
  • Hard And Unbrackable
  • Low Thermal And Electrical Conductivity.
  • Non-Toxic
  • Perfect Weld Ability
  • Safe For Lying Under Water, Under Soil, Under Coastal Salt Marshes.
  • Can Be Butt Welded At Site In Minutes Making Joints Very Strong.
  • Safe For Portable Water As Raw Material Comes With A Food Grade Certificate.
  • Flexibility
  • Quick And Easy Jointing.

HDPE Pipe PE - 63, PE - 80 & PE - 100


SDR SDR 41 SDR 33 SDR 26 SDR 21 SDR 17 SDR 13.6 SDR 11 SDR 9 SDR 7.4 SDR 6
Nominal Pressure (PN Bar)
PN 63
PN 80
PN 100		 PN 2.0
PN 2.5
PN 3.0		 PN 2.5
PN 3.2
PN 4.0		 PN 3.2
PN 4.0
PN 5.0		 PN 4.0
PN 5.0
PN 6.0		 PN 5.0
PN 6.0
PN 8.0		 PN 6.0
PN 8.0
PN 10.0		 PN 8.0
PN 10.0
PN 12.5
PN 12.5
PN 16.0
PN 16.0
PN 20.0

PN 20.0
Pipe Wall Thickness in mm and Weight in gm. per meter
OD Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
16 - - - - - - - - - - - - - - 1.8 2.1 2.2 2.5 2.7 3.1
20 - - - - - - - - - - - - 1.9 2.2 2.3 2.6 2.7 3.1 3.4 3.8
25 - - - - - - - - - - 1.9 2.2 2.3 2.6 2.8 3.2 3.4 3.8 4.2 4.7
32 - - - - - - - - 1.9 2.2 2.4 2.7 2.9 3.3 3.6 4.1 4.4 4.9 5.4 6.0
40 - - - - - - 1.9 2.2 2.4 2.7 3.0 3.4 3.7 4.2 4.5 5.1 5.4 6.0 6.7 7.5
50 - - - - 2.0 2.3 2.4 2.7 3.0 3.4 3.7 4.2 4.6 5.2 5.6 6.3 6.8 7.6 8.4 9.3
63 - - - - 2.5 2.9 3.0 3.4 3.7 4.2 4.7 5.3 5.8 6.5 7.0 7.8 8.6 9.6 10.5 11.7
75 1.9 2.2 2.3 2.6 2.9 3.3 3.6 4.1 4.5 5.1 5.6 6.3 6.9 7.7 8.4 9.3 10.2 11.3 12.5 13.9
90 2.2 2.5 2.8 3.2 3.5 4.0 4.3 4.8 5.3 5.9 6.7 7.5 8.2 9.1 10.0 11.1 12.2 13.5 15.0 16.6
110 2.7 3.1 3.4 3.8 4.3 4.8 5.9 6.6 6.5 7.3 8.1 9.0 10.0 11.1 12.3 13.6 14.9 16.5 18.4 20.3
125 3.1 3.5 3.8 4.3 4.8 5.4 6.0 6.7 7.4 8.2 9.2 10.2 11.4 12.7 13.9 15.4 16.9 18.7 20.9 23.1
140 3.5 4.0 4.3 4.8 5.4 6.0 6.7 7.5 8.3 9.2 10.3 11.4 12.8 14.2 15.6 17.3 19.0 21.0 23.4 25.8
160 3.9 4.4 4.9 5.5 6.2 6.9 7.7 8.6 9.5 10.6 11.8 13.1 14.6 16.2 17.8 19.7 21.7 24.0 26.7 29.5
180 4.4 4.9 5.5 6.2 7.0 7.8 8.6 9.6 10.6 11.8 13.3 14.7 16.4 18.1 20.0 22.1 24.4 26.9 30.0 33.1
200 4.9 5.5 6.1 6.8 7.7 8.6 9.6 10.7 11.8 13.1 14.7 16.3 18.2 20.1 22.3 24.6 27.1 29.9 33.4 36.8
